Flanges and Accessories
The DUCTPRO FLANGE SYSTEMS offers flexibility, ease of installation and rapid assembly of crossed ducting joints. A permanently developing system that has been successful in the market for its advantage of the four screw connection is the fact that the duct only needs to be bolted together in the four corners.
Key features of this system are:
- Rapid assembly of cross joints
- Corner design ensures correct insertion into section.
- Permanently flexible non-toxic sealant injected into the profile
- Availability in standard Euro sizes of 20mm, 30mm , 40mm
- Suitable for low medium and high pressure classes
- A full range of accessories to suit all sizes of flange

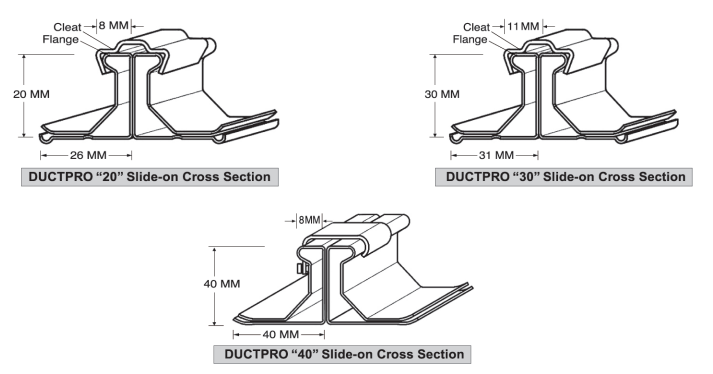

DUCTPRO Rectangular Joint Flange Profiles are manufactures in three sizes, different sheet steel thicknesses, with and without sealant.
DUCTPRO FLANGE SYSTEMS 4 BOLT Slide ON Flange System is manufactured by precision roll forming operation. out of hot dipped cold reduced galvanized slit coils as per ASTM A 653 CSB and ASTM A 924. DUCTPRO Flanges, Corners & Cleats/Clamp Systems are available in all sizes 20mm, 30mm, 40mm sizes suiting the respective flange profiles. DUCTPRO Corners are manufactured out of cold rolled mild steel and galvanized after the manufacturing.
Note:

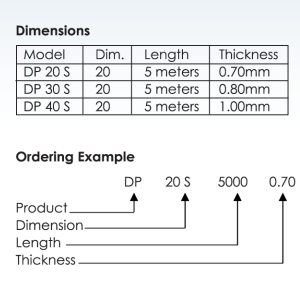

- Standard Length of Flanges –5000mm
- (3000mm is available upon request)
- Standard length of Drive Cleat is 2000mm
Specification:
The corners are constructed to fit the flange profile and are electro galvanized. The appropriate size of flange shall be fitted to the ductwork as covered in construction schedules of DW Standards. The M8 bolt and nut is to be used with all the DP 20C corners. The M10 bolt and nut is to be used with DP 30C & and DP 40C corners. The Flanges shall be fitted to the ductwork and assembled on site with the appropriate gasket as per manufacturers instructions.
Advantages :
1. Minimizes fabrication time and cost
2. No need of Secondary sealant
3. Accommodates complete ductwork requirements.
4. Will not harden or crack post installation
5. Fully Conforms to 11VCA Standards
6. Anti Corrosion properties
Technical Data:
The characteristics of a particular duct connection or joint are usually referenced to the Sheet Metal and Air Conditioning Contractors National Association (SMACNA) Manuals. SMACNA encourages the use of new technology, but does not endorse proprietary products. Ductpro Systems have been designed to meet SMACNA requirements.
Guarantees:
All component parts of the Ductpro Flanging Systems are guaranteed against defective material.
